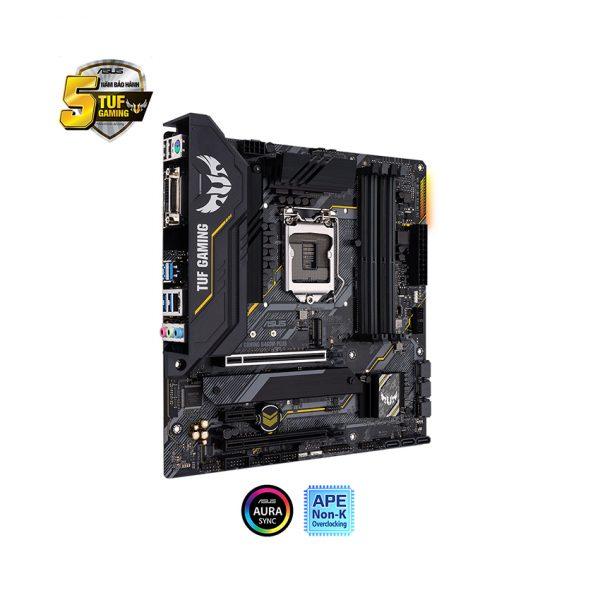

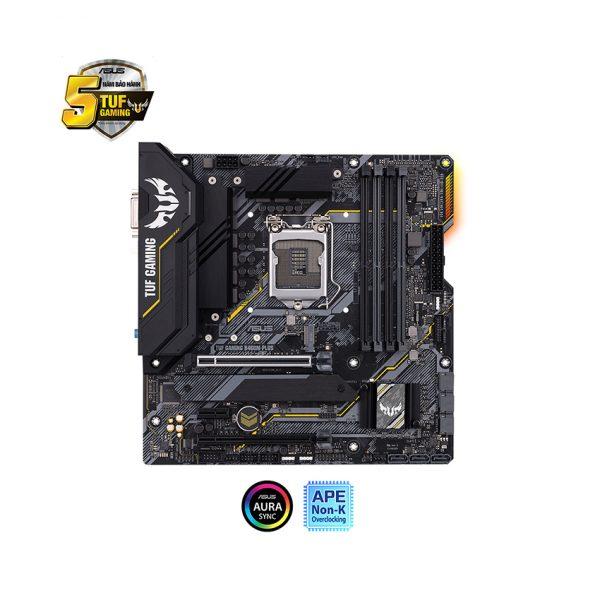

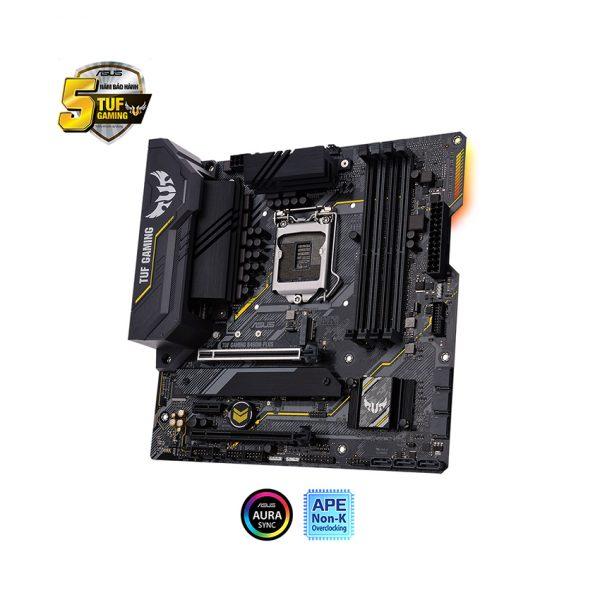

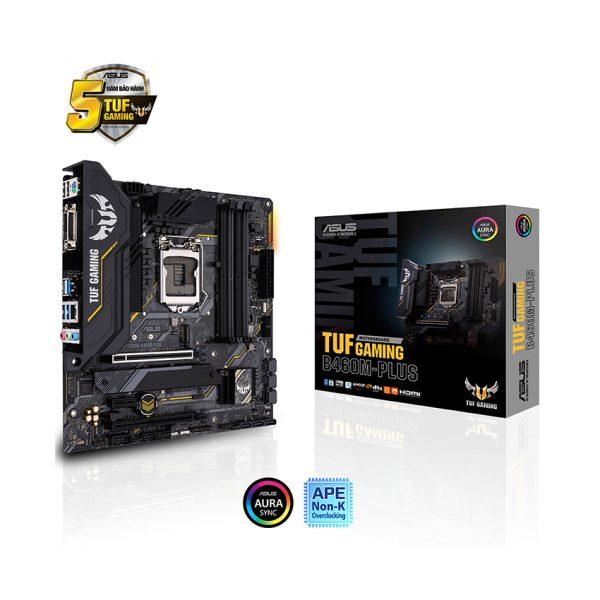

Mainboard ASUS TUF GAMING B460M-PLUS

2.590.000₫

Thông số sản phẩm

Kích thước: M-ATX
Socket: LGA1200
Chipset: B460
Khe RAM tối đa: 4
Loại RAM hỗ trợ: DDR4
BẢO HÀNH 36 THÁNG

Danh mục: MAINBOARD INTEL, MAINBOARD-BO MẠCH

Mô tả
Đánh giá (0)

Thông số
Sản phẩm	Bo mạch chủ
Tên Hãng	ASUS
Model	TUF GAMING B460M-PLUS
CPU hỗ trợ	Intel
Chipset	B460
RAM hỗ trợ	4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz
Khe cắm mở rộng	1 x PCIe 3.0 x16 (x16 mode) 1 x PCIe 3.0 x16 (x4 mode) 1 x PCIe 3.0 x1
Ổ cứng hỗ trợ	1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s)
Cổng kết nối (Internal)	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper(s) 1 x COM port header
Cổng kết nối (Back Panel)	1 x PS/2 keyboard/mouse combo port(s) 1 x DVI 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 1 Type-A 2 x USB 2.0 3 x Audio jack(s)
AN / Wireless	Intel® I219-V 1Gb Ethernet
Kích cỡ	mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
