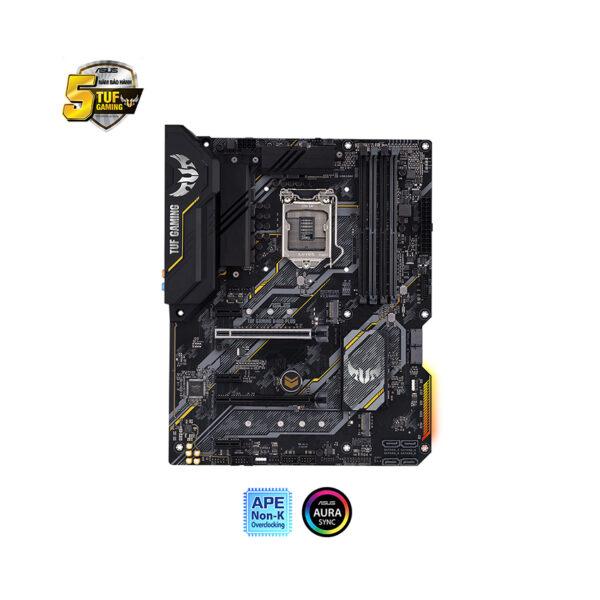

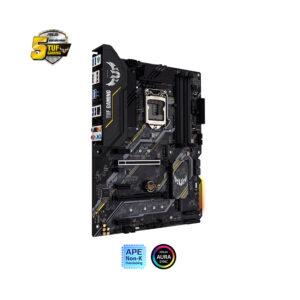

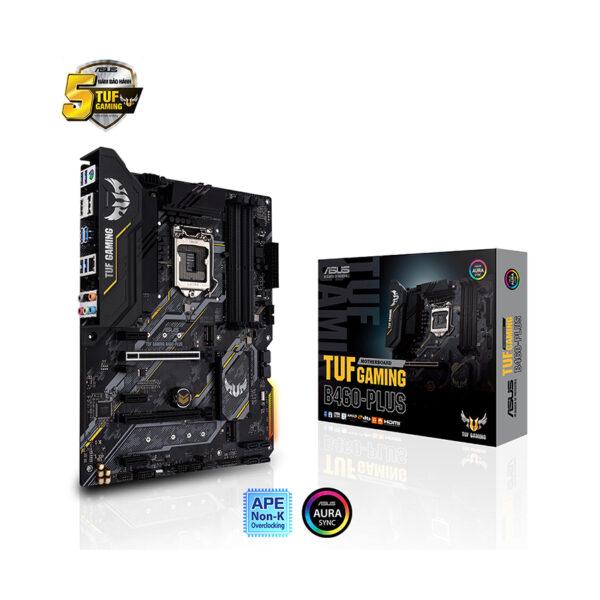

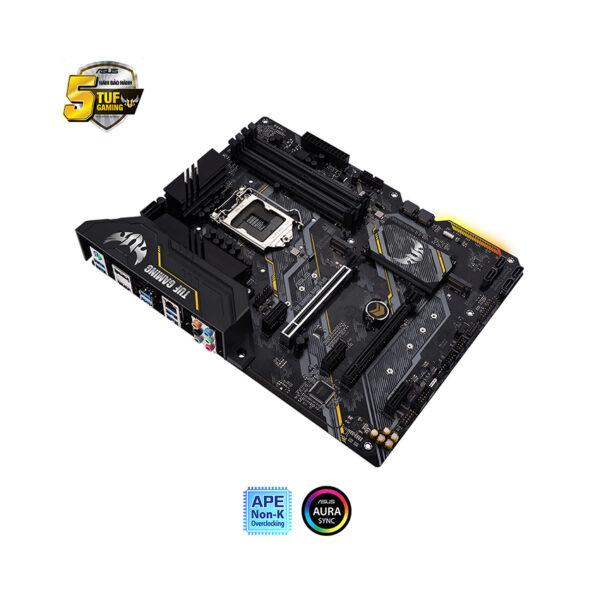

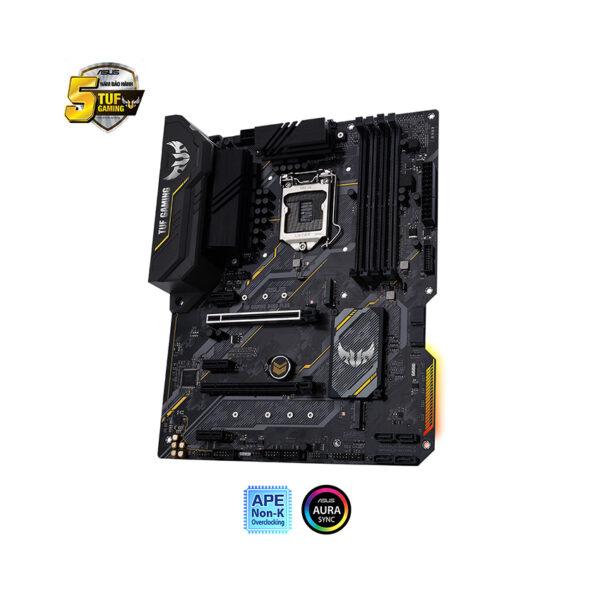

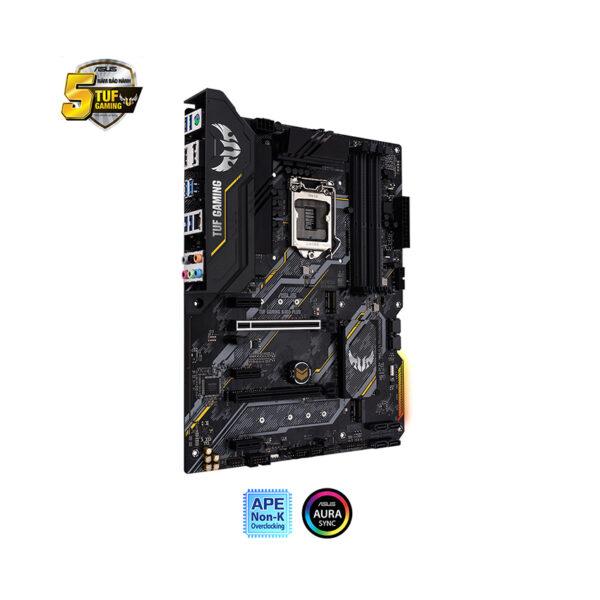

Mainboard ASUS TUF GAMING B460-PLUS
2.690.000₫
Thông số sản phẩm
- Kích thước: ATX

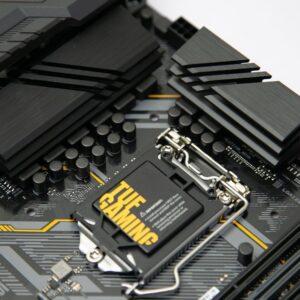

- Socket: LGA1200
- Chipset: B460
- Khe RAM tối đa: 4
- Loại RAM hỗ trợ: DDR4
- Bảo hành: 36 tháng
Thông số kỹ thuật chi tiết Mainboard ASUS TUF GAMING B460-PLUS (Intel B460, Socket 1200, ATX, 4 khe Ram DDR4)
| Sản phẩm | Mainboard – Bo mạch chủ |
| Tên Hãng | ASUS |
| Model | TUF GAMING B460-PLUS |

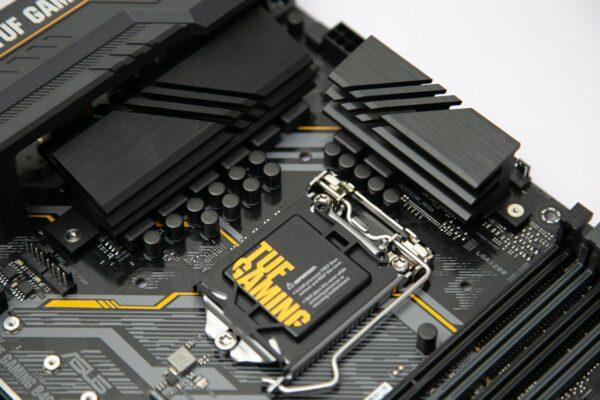

| CPU hỗ trợ | Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors * Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
| Chipset | Intel® B460 |
| RAM hỗ trợ | 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Đồ họa | Integrated Graphics Processor 1 x DisplayPort 1.4 ** 1 x HDMI 1.4b |
| Hỗ trợ Multi-GPU | Supports AMD 2-Way CrossFireX Technology |

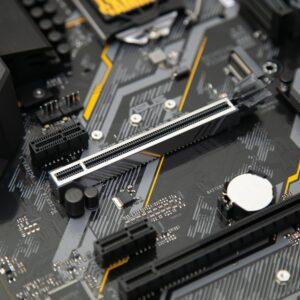

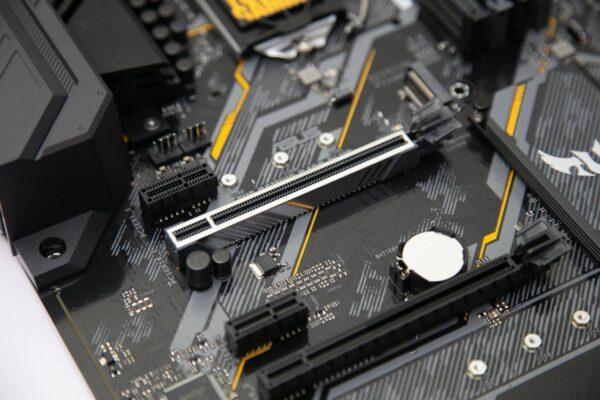

| Khe cắm mở rộng | Intel® 10th Gen Processors 1 x PCIe 3.0 x16 (x16 mode) Intel® B460 Chipset 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1 |

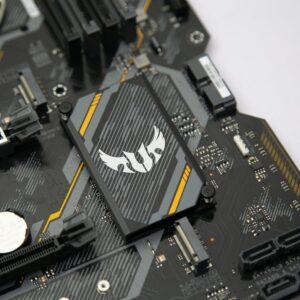

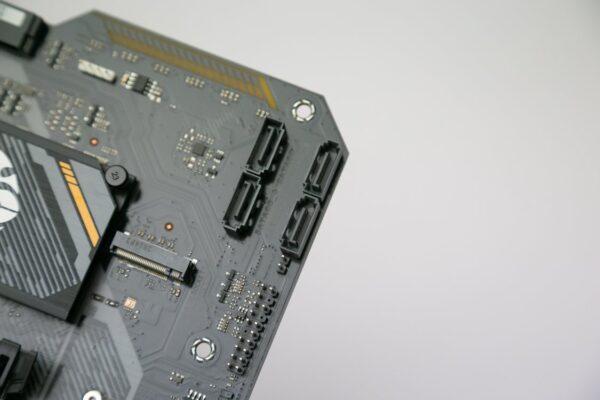

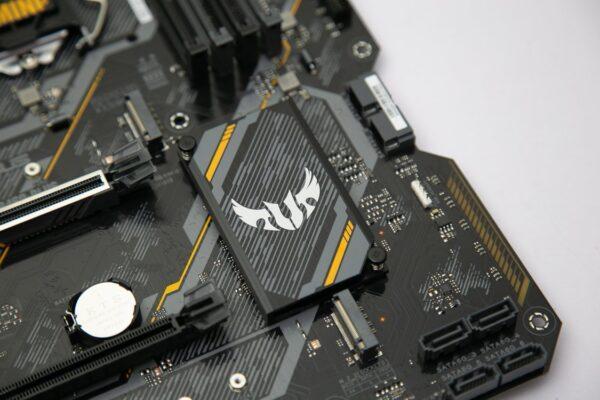

| Ổ cứng hỗ trợ | Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel® B460 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready *2 |
| LAN | Intel® I219-V 1Gb Ethernet |
| Âm Thanh | Realtek ALC S1200A 8-Channel High Definition Audio CODEC – Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : – Exclusive DTS Custom for GAMING Headsets. – Audio Shielding – Dedicated audio PCB layers – Premium Japanese audio capacitors |
| USB | Rear USB Port ( Total 6 ) 6 x USB 3.2 Gen 1 port(s)(6 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) |

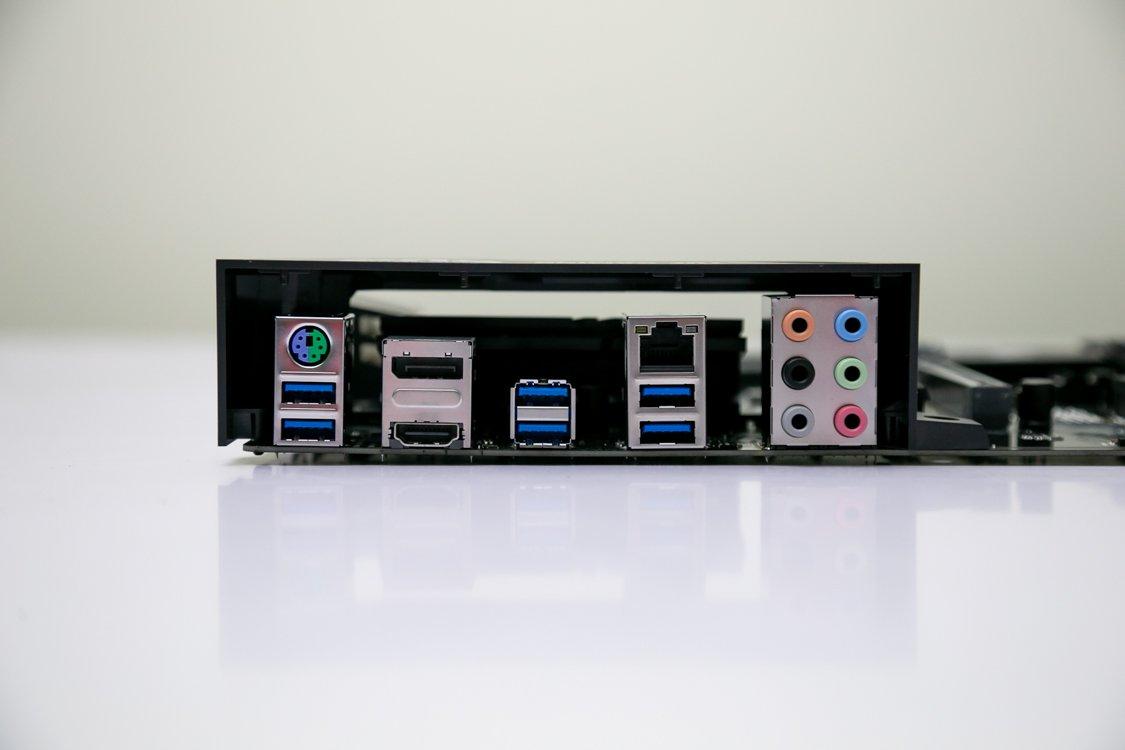

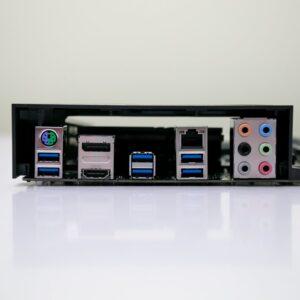

| Cổng kết nối ( I/O Phía sau) | 1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 6 x USB 3.2 Gen 1 Type-A 6 x Audio jack(s) |
| Cổng kết nối ( I/O bên trong) | 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header |
| Kích cỡ | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
